A-Z7GTJ — Exterior Pavers to Depressed Stone

Architectural · A-Z7GTJ

Exterior Pavers to Depressed Stone

Scale: SCALE: 3" = 1'-0"
Units: imperial
Sheet: A-625
Discipline: Architectural

Materials

Concrete Masonry / CMU Stone

Elements

Doors Expansion / Control Joints Floors / Slabs Site / Paving

Text on the drawing

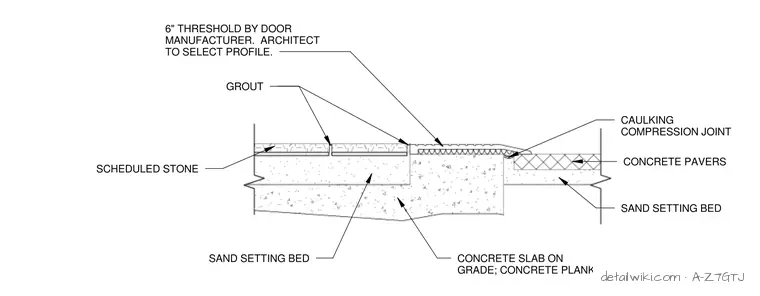

CONCRETE SLAB ON GRADE; CONCRETE PLANK 6" THRESHOLD BY DOOR MANUFACTURER. ARCHITECT TO SELECT PROFILE. CAULKING COMPRESSION JOINT CONCRETE PAVERS SAND SETTING BED GROUT SCHEDULED STONE SAND SETTING BED
