Architectural · A-Z6YFR

Directional Sign 2

About this detail

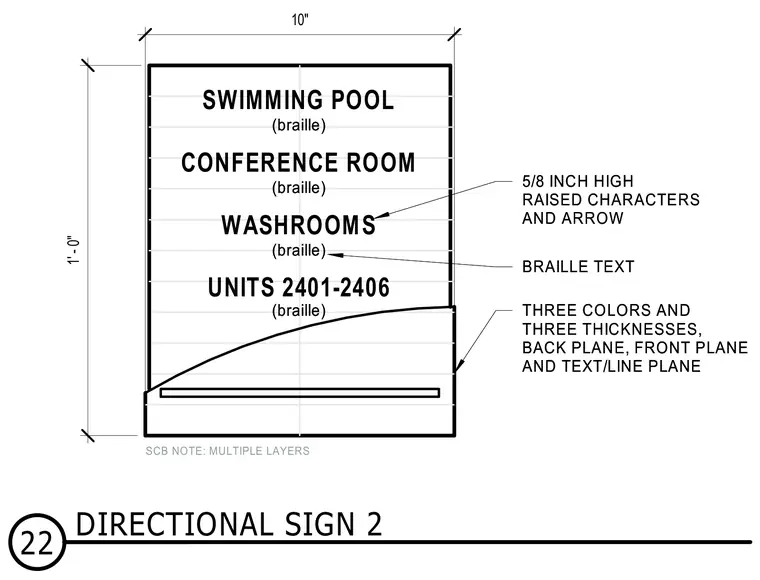

This multi-layered directional sign measures ten inches wide by one foot high and incorporates tactile elements for accessibility. The construction features three distinct planes comprising a back plane, front plane, and text and line plane in three colors and thicknesses. Five-eighths-inch high raised characters and directional arrows are paired with integrated Braille text beneath each destination line. Standard designations indicate locations for swimming pool, conference room, washrooms, and units 2401 through 2406.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
