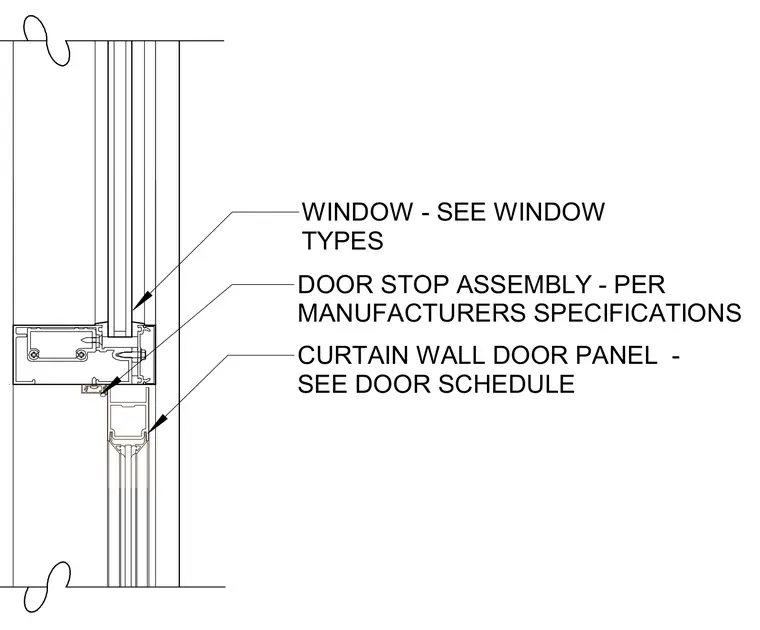

This assembly details the transition between a curtain wall door panel and an adjacent window system. A door stop assembly is integrated per the manufacturer's specifications. The curtain wall door panel is sized according to the door schedule, and the window is specified per the window types.
WINDOW - SEE WINDOW TYPES CURTAIN WALL DOOR PANEL - SEE DOOR SCHEDULE DOOR STOP ASSEMBLY - PER MANUFACTURERS SPECIFICATIONS
