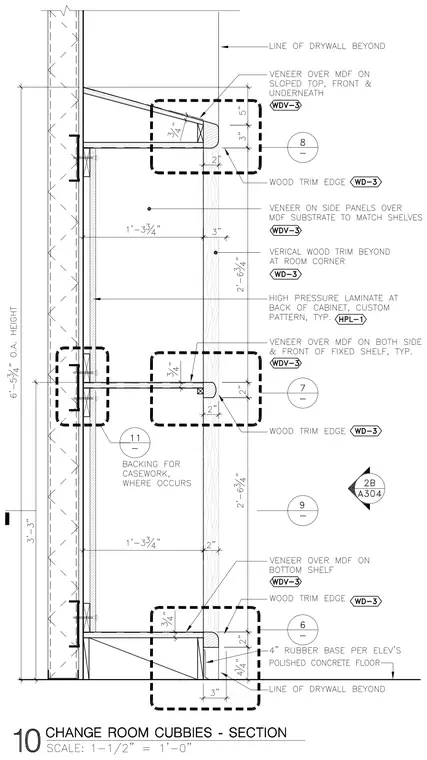

A vertical section of change room cubbies anchors to a framed wall with backing. The unit features a sloped top shelf, a fixed intermediate shelf, and a bottom shelf, all constructed from medium density fiberboard substrate with wood veneer matching finish identifier WDV-3. Each shelf incorporates a solid wood trim edge and a three-quarter inch thickness. The back of the cabinet is finished with high-pressure laminate having a custom pattern designated as HPL-1. A four-inch rubber base sits along the polished concrete floor beneath the bottom shelf. The overall assembly reaches a height of six feet and five and three-quarter inches.
