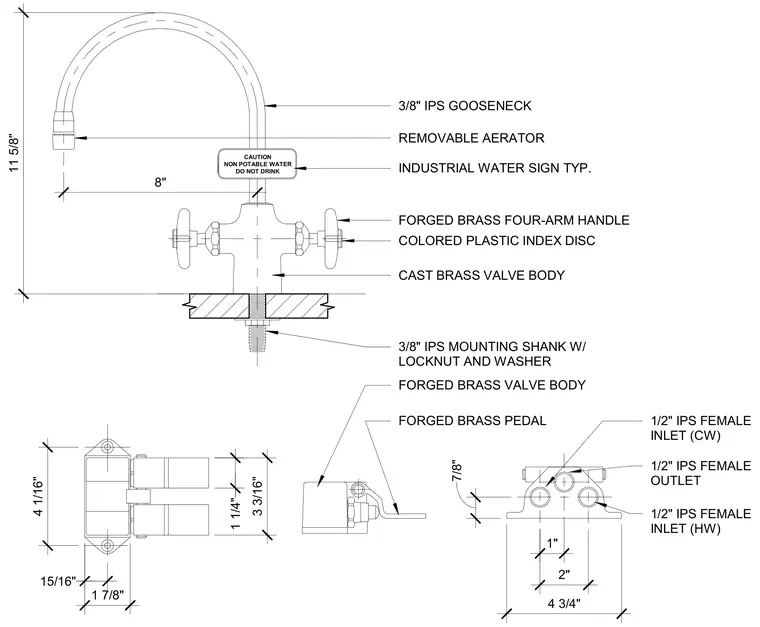

An industrial water fixture featuring a cast brass valve body with a 3/8-inch iron pipe size gooseneck spout and removable aerator. The assembly includes a forged brass four-arm handle with a colored plastic index disc and a warning sign noting non-potable industrial water. A 3/8-inch iron pipe size mounting shank with a locknut and washer secures the fixture to the mounting surface. Accompanying views show a forged brass pedal valve with 1/2-inch iron pipe size female inlets for cold and hot water and a 1/2-inch female outlet.
3/8" IPS GOOSENECK REMOVABLE AERATOR FORGED BRASS VALVE BODY FORGED BRASS PEDAL 1/2" IPS FEMALE INLET (CW) 1/2" IPS FEMALE INLET (HW) 1/2" IPS FEMALE OUTLET 3/8" IPS MOUNTING SHANK W/ LOCKNUT AND WASHER 11 5/8" 8" 4 1/16" 15/16" 1 7/8" 1 1/4" 3 3/16" 1" 2" 4 3/4" 7/8" DO NOT DRINK CAUTION NON POTABLE WATER INDUSTRIAL WATER SIGN TYP. CAST BRASS VALVE BODY FORGED BRASS FOUR-ARM HANDLE COLORED PLASTIC INDEX DISC
