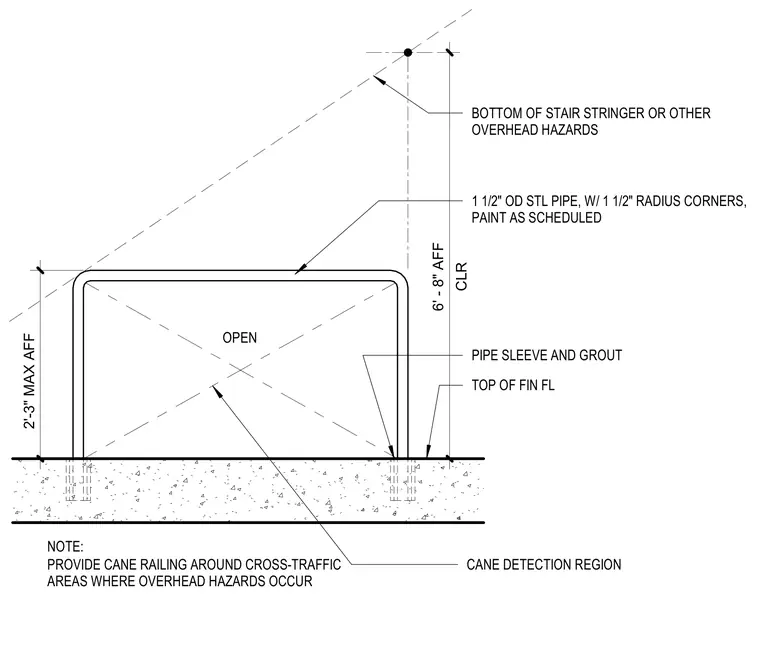

A 1 1/2-inch outer diameter steel pipe cane railing is installed in cross-traffic areas where overhead hazards such as stair stringers occur below 6 feet 8 inches above finished floor clearance. The railing stands at a maximum height of 2 feet 3 inches above the finished floor and features 1 1/2-inch radius corners, with finish paint applied per schedule. The railing posts anchor into pipe sleeves set and grouted into the structural concrete floor slab.
1 1/2" OD STL PIPE, W/ 1 1/2" RADIUS CORNERS, PAINT AS SCHEDULED PIPE SLEEVE AND GROUT BOTTOM OF STAIR STRINGER OR OTHER OVERHEAD HAZARDS CANE DETECTION REGION PROVIDE CANE RAILING AROUND CROSS-TRAFFIC AREAS WHERE OVERHEAD HAZARDS OCCUR TOP OF FIN FL CLR 6' - 8" AFF 2'-3" MAX AFF OPEN NOTE: 4 t " IIJ IJ-H 4 4 * III. J I I - % ' Ml III 4 411 <111-4 - m i -'m 4 4< '4 u£ _LLI A < '4 4 4 < " 4 1
