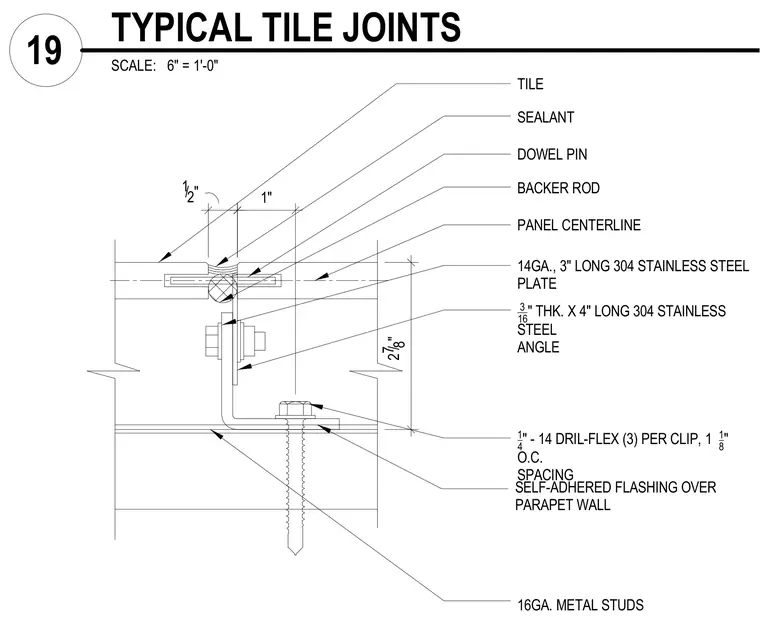

A tile joint assembly is anchored over a parapet wall backed by sixteen-gauge metal studs. A self-adhered flashing membrane covers the top of the parapet wall beneath a three-sixteenth-inch thick by four-inch long 304 stainless steel angle. The angle is secured to the studs using one-quarter-inch by fourteen Dril-Flex fasteners, with three fasteners per clip spaced at one and one-eighth inches on center. A fourteen-gauge, three-inch long 304 stainless steel plate connects into the joint alongside a dowel pin and backer rod. The exterior surface finishes with tile and is sealed with sealant across the joint.
1/2" 1" 27/8" 3__ 16 " THK. X 4" LONG 304 STAINLESS STEEL ANGLE BACKER ROD PANEL CENTERLINE DOWEL PIN SEALANT TILE 14GA., 3" LONG 304 STAINLESS STEEL PLATE 1_ 4 " - 14 DRIL-FLEX (3) PER CLIP, 1 1_ 8 " O.C. SPACING 16GA. METAL STUDS SELF-ADHERED FLASHING OVER PARAPET WALL SCALE: 6" = 1'-0" 19 TYPICAL TILE JOINTS
