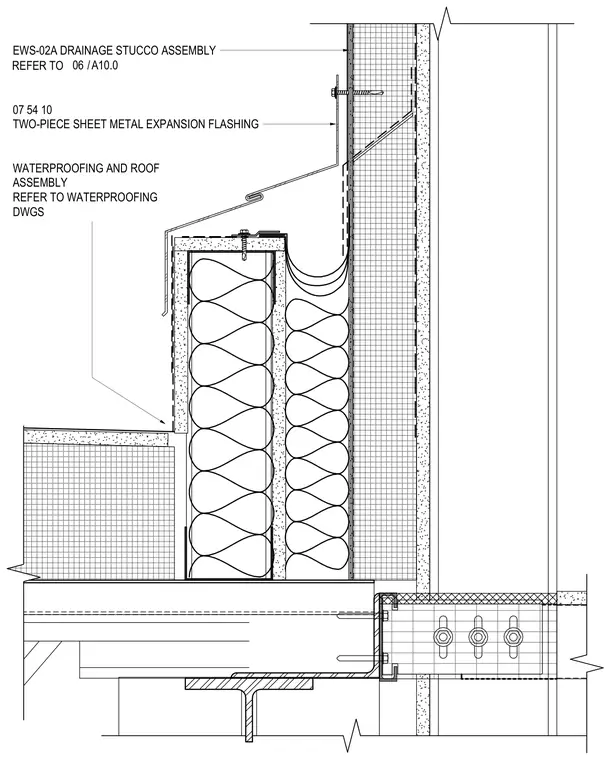

A two-piece sheet metal expansion flashing bridges a vertical joint adjacent to a drainage stucco assembly and roof waterproofing detail. The metal flashing assembly secures over framed wall construction with batt insulation, exterior sheathing, and stucco cladding. Structural steel supports the roof and wall assembly below, incorporating framing members and fasteners configured to accommodate thermal movement.
/ REFER TO 06 A10.0 EWS-02A DRAINAGE STUCCO ASSEMBLY 07 54 10 TWO-PIECE SHEET METAL EXPANSION FLASHING WATERPROOFING AND ROOF ASSEMBLY REFER TO WATERPROOFING DWGS
