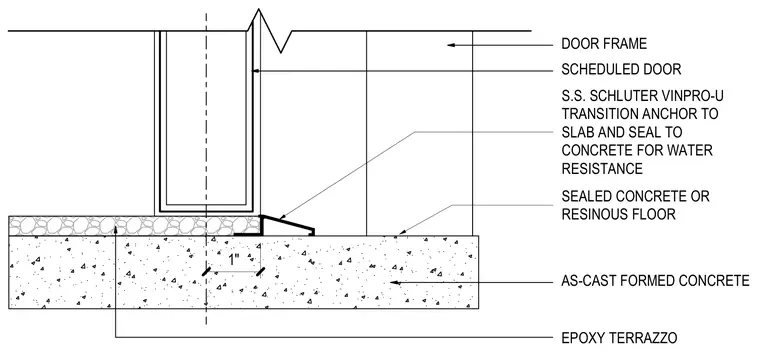

This threshold transition assembly sits on an as-cast formed concrete slab supporting epoxy terrazzo flooring and a sealed concrete or resinous floor finish. A stainless steel Schluter Vinpro-U transition profile anchors directly into the slab and is sealed to the concrete for water resistance. The assembly accommodates a scheduled door within a standard door frame.
EPOXY TERRAZZO 1" DOOR FRAME AS-CAST FORMED CONCRETE SCHEDULED DOOR SEALED CONCRETE OR RESINOUS FLOOR S.S. SCHLUTER VINPRO-U TRANSITION ANCHOR TO SLAB AND SEAL TO CONCRETE FOR WATER RESISTANCE
