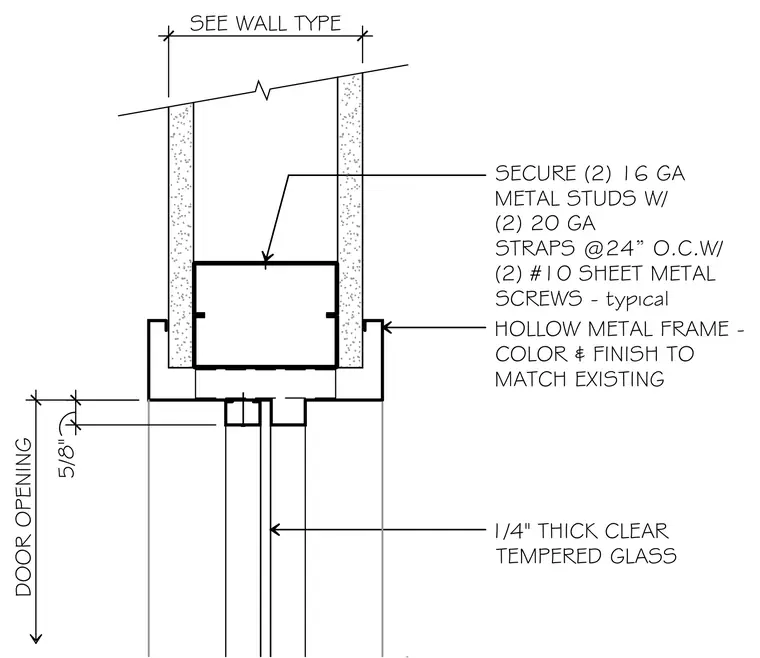

Two sixteen-gauge metal studs are secured with two twenty-gauge straps spaced at twenty-four inches on center using two number ten sheet metal screws typical. A hollow metal frame with a color and finish to match existing surrounds a quarter-inch thick clear tempered glass panel at the door opening.
SECURE (2) 16 GA METAL STUDS W/ (2) 20 GA STRAPS @24” O.C.W/ (2) #10 SHEET METAL SCREWS - typical HOLLOW METAL FRAME - COLOR & FINISH TO MATCH EXISTING 1/4" THICK CLEAR TEMPERED GLASS 5/8" DOOR OPENING SEE WALL TYPE
