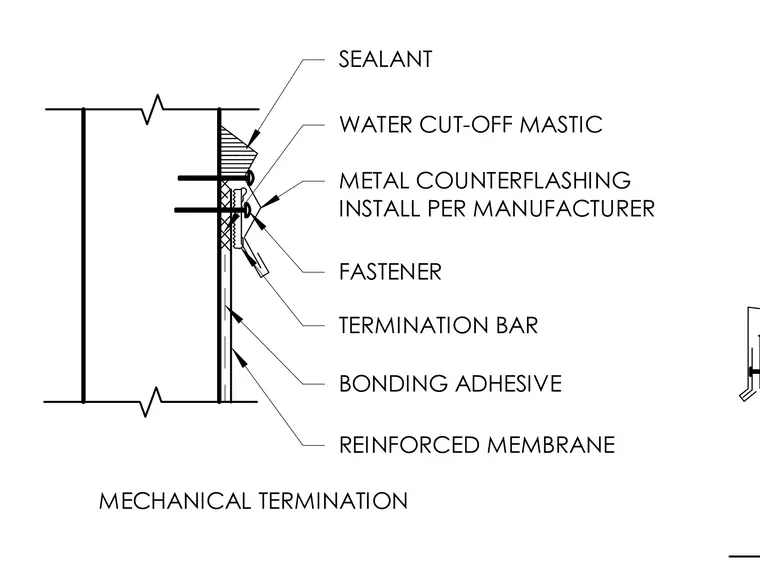

A reinforced membrane is adhered to the wall substrate using bonding adhesive and secured mechanically with a termination bar and fasteners. Water cut-off mastic is applied behind the upper edge of the membrane beneath a metal counterflashing. A bead of sealant seals the joint along the top of the counterflashing against the wall.
MECHANICAL TERMINATION REINFORCED MEMBRANE BONDING ADHESIVE TERMINATION BAR FASTENER METAL COUNTERFLASHING INSTALL PER MANUFACTURER WATER CUT-OFF MASTIC SEALANT
