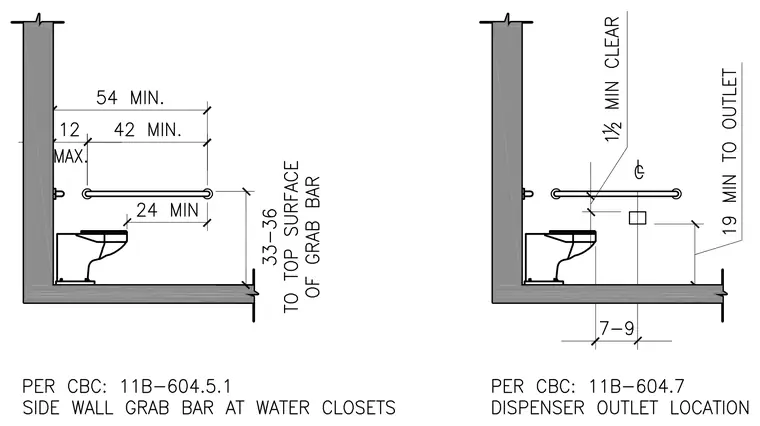

The side wall grab bar is mounted at a height of thirty-three to thirty-six inches to the top surface of the grab bar above the finished floor. The bar extends a minimum of fifty-four inches from the rear wall, with a forty-two inch minimum length positioned at least twenty-four inches from the front of the water closet and a maximum of twelve inches from the rear wall. A toilet paper dispenser outlet is located seven to nine inches in front of the water closet, a minimum of nineteen inches above the finished floor, and with a one-and-one-half inch clearance provided above the grab bar.
