An accessible parking sign assembly includes a metal sign panel and a typical one-and-one-quarter-inch metal cap. The sign features reflective white lettering in Frutiger Bold font and a screen-printed knockout symbol and border on a blue background. The enamel finish complies with Federal Standard 595C, requiring permanent fabrication without vinyl or stick-on letters. Dimensions specify a width of two feet four inches, a height of four feet, and standard clearances including a six-inch minimum margin.

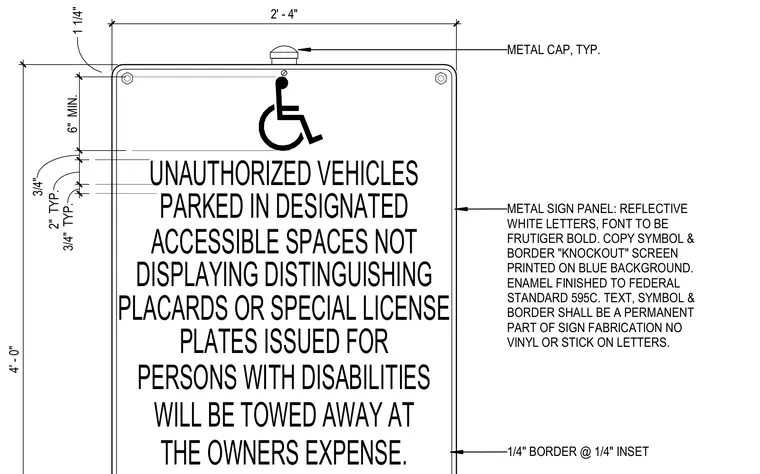

1 1/4" METAL CAP, TYP. METAL SIGN PANEL: REFLECTIVE WHITE LETTERS, FONT TO BE FRUTIGER BOLD. COPY SYMBOL & BORDER "KNOCKOUT" SCREEN PRINTED ON BLUE BACKGROUND. ENAMEL FINISHED TO FEDERAL STANDARD 595C. TEXT, SYMBOL & BORDER SHALL BE A PERMANENT PART OF SIGN FABRICATION NO VINYL OR STICK ON LETTERS. 1/4" BORDER @ 1/4" INSET UNAUTHORIZED VEHICLES ACCESSIBLE SPACES NOT PARKED IN DESIGNATED PLATES ISSUED FOR PERSONS WITH DISABILITIES DISPLAYING DISTINGUISHING PLACARDS OR SPECIAL LICENSE THE OWNERS EXPENSE. WILL BE TOWED AWAY AT 2' - 4" 4' - 0" 6" MIN. 3/4" 2" TYP. 3/4" TYP.
