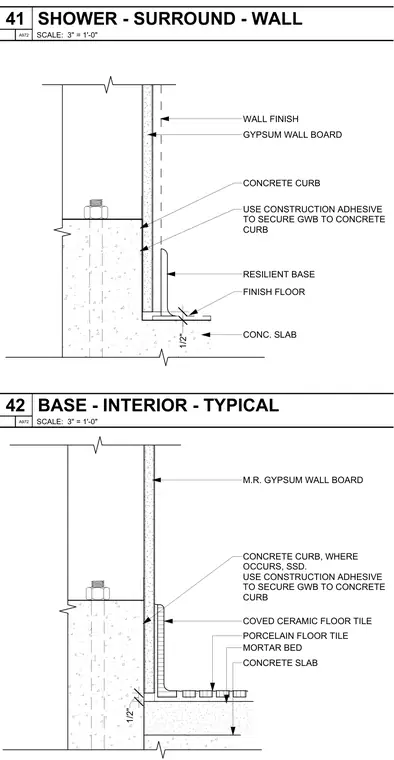

This interior wall base assembly features moisture-resistant gypsum wall board secured with construction adhesive to a concrete curb. The curb sits atop a concrete slab finished with porcelain floor tile laid over a one-half inch mortar bed. A coved ceramic floor tile transitions from the horizontal tile surface up the vertical face of the curb. A resilient base is applied at the wall finish for standard wall conditions.
RESILIENT BASE WALL FINISH 1/2" GYPSUM WALL BOARD FINISH FLOOR CONCRETE CURB USE CONSTRUCTION ADHESIVE TO SECURE GWB TO CONCRETE CURB CONC. SLAB CONCRETE SLAB 1/2" MORTAR BED PORCELAIN FLOOR TILE COVED CERAMIC FLOOR TILE CONCRETE CURB, WHERE OCCURS, SSD. USE CONSTRUCTION ADHESIVE TO SECURE GWB TO CONCRETE CURB M.R. GYPSUM WALL BOARD SCALE: 3" = 1'-0" A972 SHOWER - SURROUND - WALL 41 SCALE: 3" = 1'-0" A972 BASE - INTERIOR - TYPICAL 42
