Exit Sign Suspension at Roof Joist

Materials

Elements

Beams Roofs Ceilings Connections / Plates

About this detail

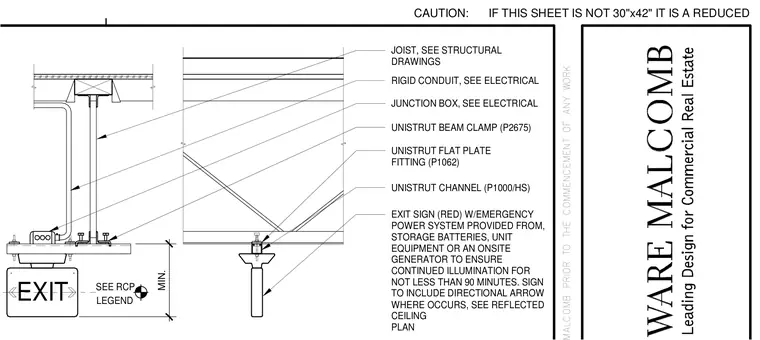

An exit sign with an emergency power system is suspended beneath a roof joist using a Unistrut channel assembly, beam clamps, and flat plate fittings. Rigid conduit feeds power from an electrical junction box mounted above the fixture. The exit sign includes a red illumination face and a directional arrow where required by code, backed by storage batteries, unit equipment, or an onsite generator to maintain illumination for a minimum of ninety minutes.
