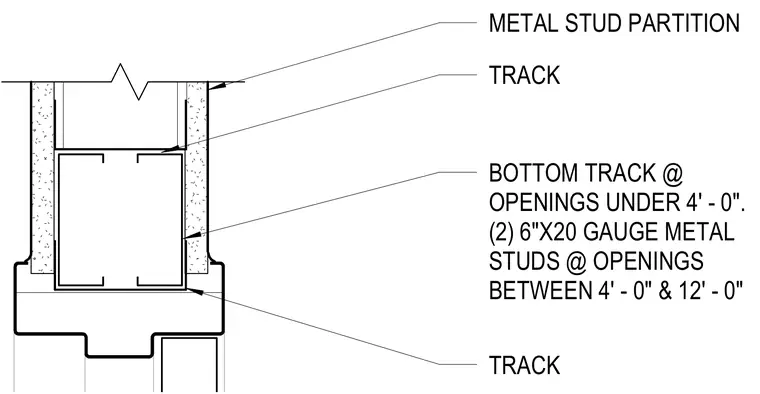

Cold-formed metal stud partition framing is detailed with track profiles at the head condition. Openings under four feet use a single bottom track, while openings between four feet and twelve feet incorporate two six-inch by twenty-gauge metal studs. Gypsum board or similar wall lining finishes the partition assembly around the framed opening.
BOTTOM TRACK @ OPENINGS UNDER 4' - 0". (2) 6"X20 GAUGE METAL STUDS @ OPENINGS BETWEEN 4' - 0" & 12' - 0" TRACK METAL STUD PARTITION TRACK
