Cold-formed metal framing connections detail the interface at both the wall head and sill. The wall head assembly features a metal stud framing into a fire track or equivalent, secured with a slip clip attached to the slip track using two number ten screws. The sill assembly consists of double king studs spaced at sixteen inches on center connected to a c-channel track, with a straight clip secured by two number ten screws and a trimmed and bent tab of the channel connected to the stud with number ten screws.

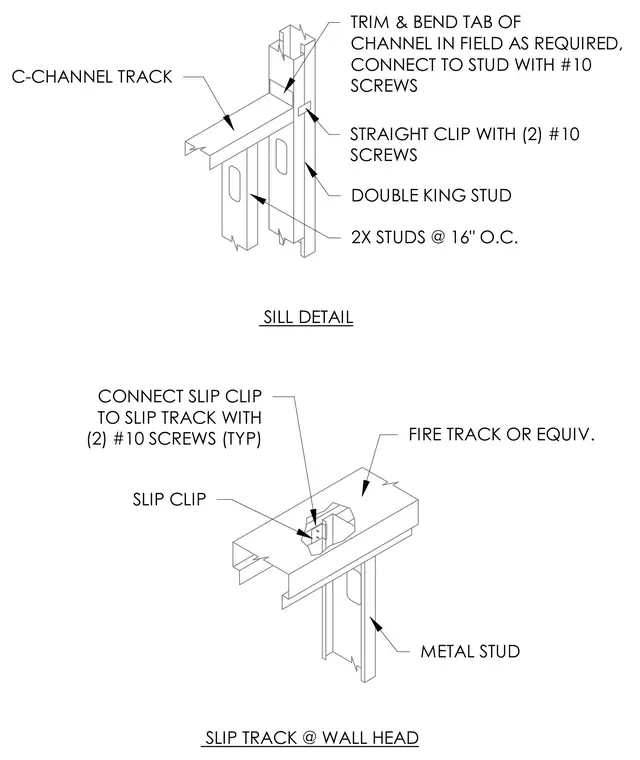

SLIP TRACK @ WALL HEAD SILL DETAIL CONNECT SLIP CLIP TO SLIP TRACK WITH (2) #10 SCREWS (TYP) SLIP CLIP METAL STUD FIRE TRACK OR EQUIV. 2X STUDS @ 16" O.C. DOUBLE KING STUD STRAIGHT CLIP WITH (2) #10 SCREWS TRIM & BEND TAB OF CHANNEL IN FIELD AS REQUIRED, CONNECT TO STUD WITH #10 SCREWS C-CHANNEL TRACK 1
