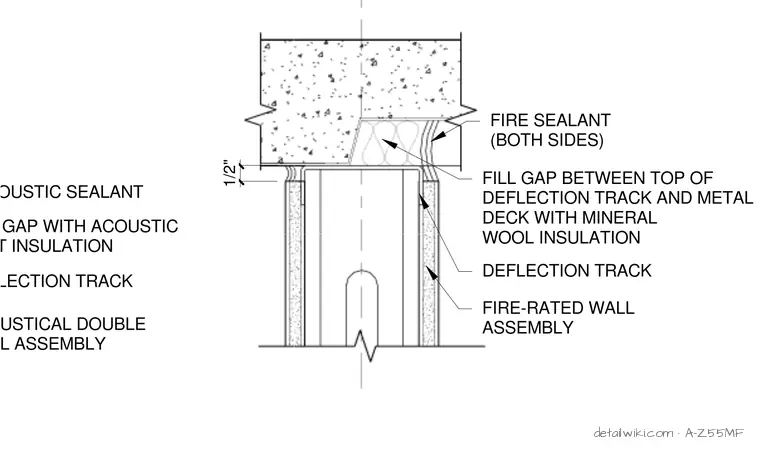

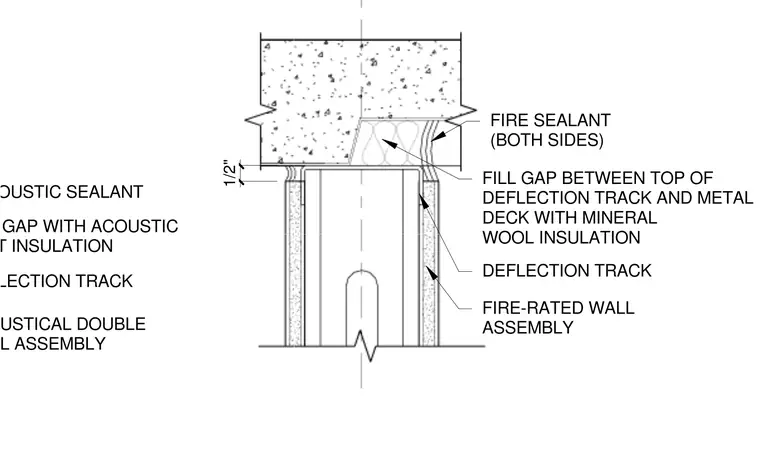

A cold-formed steel deflection track terminates below a concrete-filled metal deck with a one-half inch deflection gap. The gap between the top of the deflection track and the metal deck is filled with mineral wool insulation and sealed with fire sealant applied on both sides. The fire-rated wall assembly incorporates an acoustical double wall configuration with acoustic batt insulation and acoustic sealant.
DEFLECTION TRACK FIRE-RATED WALL ASSEMBLY FILL GAP BETWEEN TOP OF DEFLECTION TRACK AND METAL DECK WITH MINERAL WOOL INSULATION FIRE SEALANT (BOTH SIDES) 1/2" DEFLECTION TRACK ACOUSTICAL DOUBLE WALL ASSEMBLY FILL GAP WITH ACOUSTIC BATT INSULATION ACOUSTIC SEALANT
