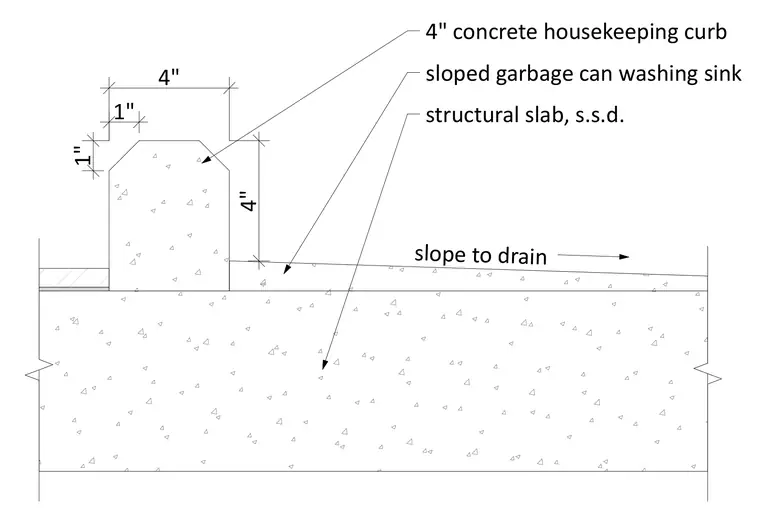

A four-inch concrete housekeeping curb forms a sloped garbage can washing sink bearing directly on a structural slab. The floor slopes toward the drain.
4" 4" 1" 1" sloped garbage can washing sink 4" concrete housekeeping curb structural slab, s.s.d. slope to drain
