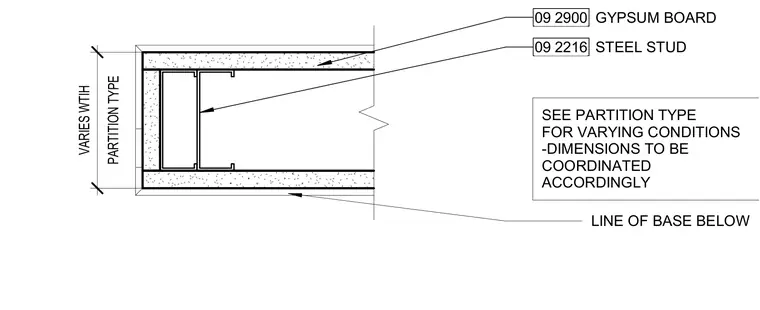

The interior partition jamb consists of cold-formed steel studs faced on each side with layers of gypsum board. Wall thickness and stud configuration vary according to the designated partition type. The assembly includes provisions for coordinating dimensions at opening transitions and notes the alignment of the base below.
PARTITION TYPE VARIES WTIH SEE PARTITION TYPE FOR VARYING CONDITIONS -DIMENSIONS TO BE COORDINATED ACCORDINGLY LINE OF BASE BELOW 09 2216 STEEL STUD 09 2900 GYPSUM BOARD
