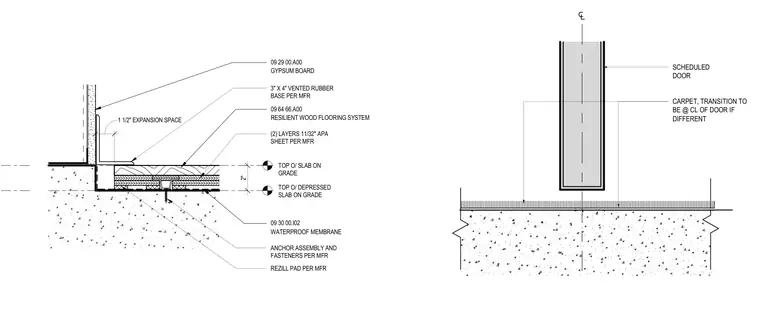

A flooring transition between a resilient wood flooring system over a depressed slab on grade and a carpeted area located at a door centerline. The assembly rests on a concrete slab on grade with a waterproof membrane, incorporating two layers of eleven-thirty-seconds-inch American Plywood Association sheets over a rezill pad per the manufacturer. A three-inch by four-inch vented rubber base is installed with a one-and-a-half-inch expansion space adjacent to gypsum board walls. The carpet transitions directly at the centerline of the scheduled door.
CARPET, TRANSITION TO BE @ CL OF DOOR IF DIFFERENT SCHEDULED DOOR TOP O/ DEPRESSED SLAB ON GRADE TOP O/ SLAB ON GRADE 09 30 00.I02 WATERPROOF MEMBRANE 09 64 66.A00 RESILIENT WOOD FLOORING SYSTEM 1 1/2" EXPANSION SPACE 3" X 4" VENTED RUBBER BASE PER MFR 2" (2) LAYERS 11/32" APA SHEET PER MFR ANCHOR ASSEMBLY AND FASTENERS PER MFR REZILL PAD PER MFR 09 29 00.A00 GYPSUM BOARD
