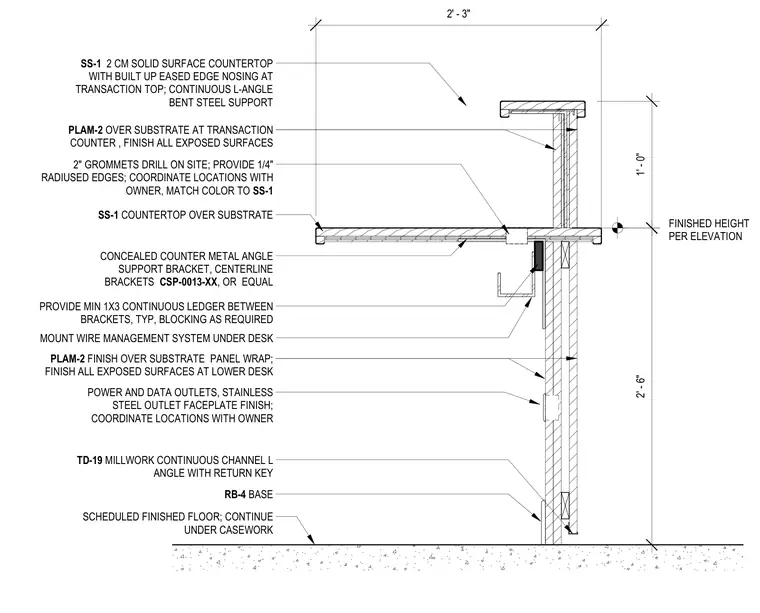

Reception Desk Section at Transaction Counter

Materials

Steel Stainless Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Stairs Floors / Slabs Millwork / Casework

About this detail

A custom reception desk section features a transaction counter supported by concealed metal angle support brackets and a continuous bent steel support. The main desk surface and transaction top feature 2-centimeter solid surface material with built-up eased edge nosing over a substrate, finished with plastic laminate panel wrap on the vertical surfaces. A minimum 1x3 continuous wood ledger is provided between brackets with required blocking, and a continuous channel L-angle with a return key is mounted beneath the desk to support a wire management system. Power and data outlets with stainless steel faceplate finishes are integrated into the paneling, and a rubber base is installed at the scheduled finished floor.
