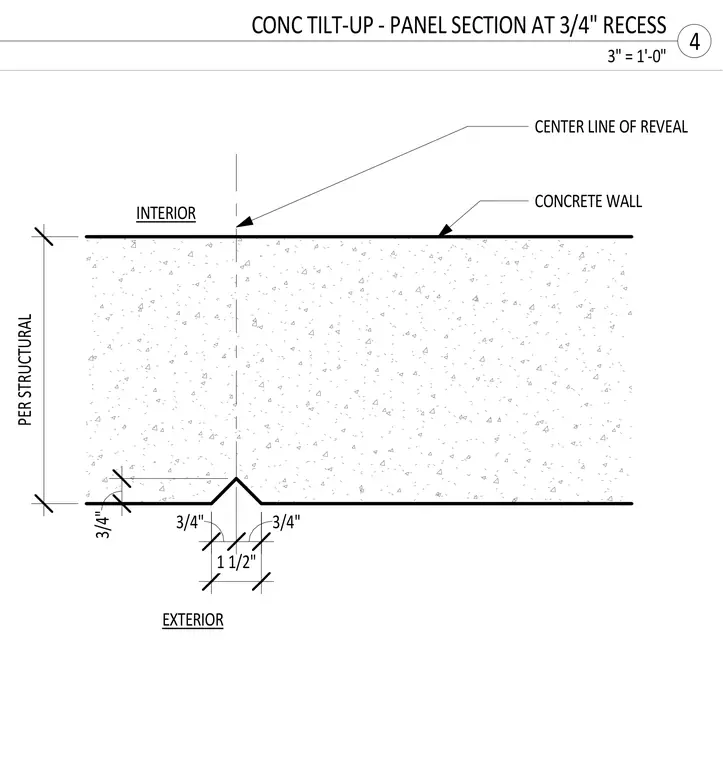

This concrete wall section details a three-quarter-inch recess forming a reveal on the exterior face of a tilt-up concrete panel. The section indicates a three-quarter-inch depth for the recess with a one-and-a-half-inch overall width at the base of the groove, centered on the reveal line. Interior and exterior orientations are marked, with reinforcing and panel thickness designated per structural drawings.
INTERIOR EXTERIOR CENTER LINE OF REVEAL CONCRETE WALL 3/4" 1 1/2" 3/4" 3/4" PER STRUCTURAL 3" = 1'-0" 4 CONC TILT-UP - PANEL SECTION AT 3/4" RECESS
