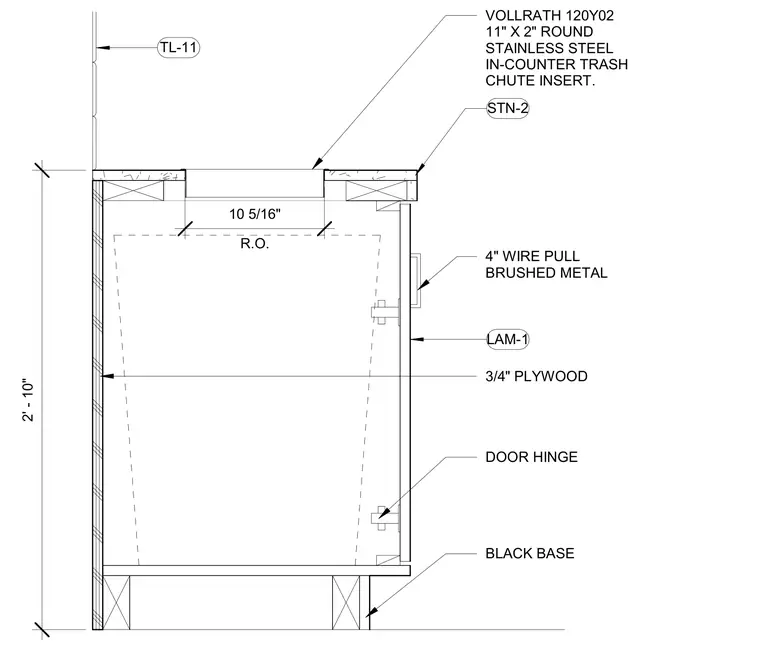

This interior millwork detail shows a breakroom base cabinet constructed with three-quarter-inch plywood panels and supported by a black base. The countertop accommodates an eleven-inch by two-inch round stainless steel in-counter trash chute insert designated as part 120Y02 by Vollrath, with a rough opening width of ten and five-sixteenths inches. The cabinet front features a swinging door attached with door hinges and operated by a four-inch brushed metal wire pull. Material finishes include laminate designated as LAM-1, countertop material STN-2, and tile backsplash TL-11.
VOLLRATH 120Y02 11" X 2" ROUND STAINLESS STEEL IN-COUNTER TRASH CHUTE INSERT. DOOR HINGE 3/4" PLYWOOD 4" WIRE PULL BRUSHED METAL BLACK BASE 2' - 10" R.O. 10 5/16" LAM-1 STN-2 TL-11
