Full Height Non Rated Metal Stud Partition Detail

Materials

Concrete Steel Timber / Wood Stone Metal (misc.)Gypsum / Drywall

Elements

Walls Ceilings Floors / Slabs Bracing Anchors / Embeds Connections / Plates

Connections

Shear Stud / Composite Deck Attachment Embed Plate

About this detail

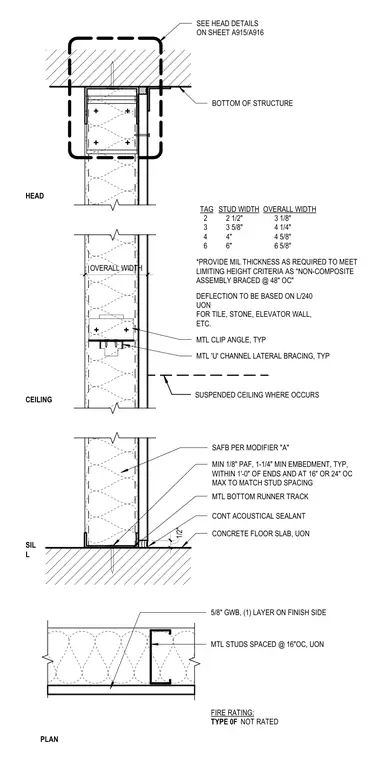

This non-rated full height metal stud partition assembly is secured to the concrete floor slab with a metal bottom runner track fastened by powder-actuated fasteners having a minimum 1/8-inch pin and 1-1/4-inch embedment. Sound attenuation fire blanket insulation is installed within the stud cavity, and one layer of 5/8-inch gypsum wallboard is applied to the finish side. Metal studs are spaced at 16 inches on center unless otherwise noted, with gauge thickness selected to meet limiting height criteria for non-composite assemblies braced at 48 inches on center with lateral metal U-channels and typical metal clip angles. The sill detail incorporates a continuous acoustical sealant at the floor slab junction. The head assembly connects to the underside of the structure and references sheets A915 and A916 for specific head conditions.
