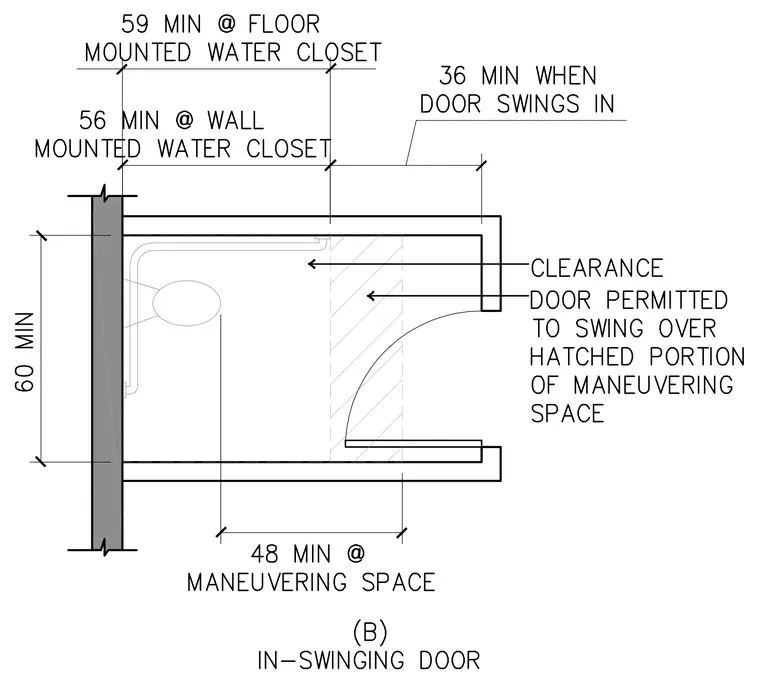

An accessible toilet compartment features a minimum width of sixty inches, with fifty-six inches required at a wall-mounted water closet and fifty-nine inches at a floor-mounted water closet. The clear maneuvering space extends a minimum of forty-eight inches. An in-swinging door requires a thirty-six inch clearance when swinging in, and the door is permitted to swing over the hatched portion of the maneuvering space.
