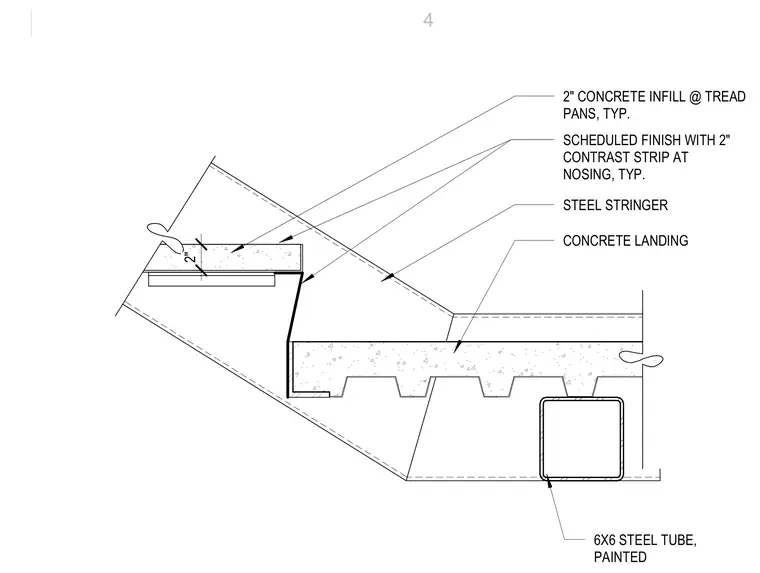

A steel stringer supports tread pans filled with two inches of concrete typically, finished with a two-inch contrast strip at the nosing. The stair transition meets a two-inch concrete landing slab that bears on a painted six-by-six steel tube structural member.
STEEL STRINGER 2" CONCRETE INFILL @ TREAD PANS, TYP. SCHEDULED FINISH WITH 2" CONTRAST STRIP AT NOSING, TYP. 2" CONCRETE LANDING 6X6 STEEL TUBE, PAINTED 4
