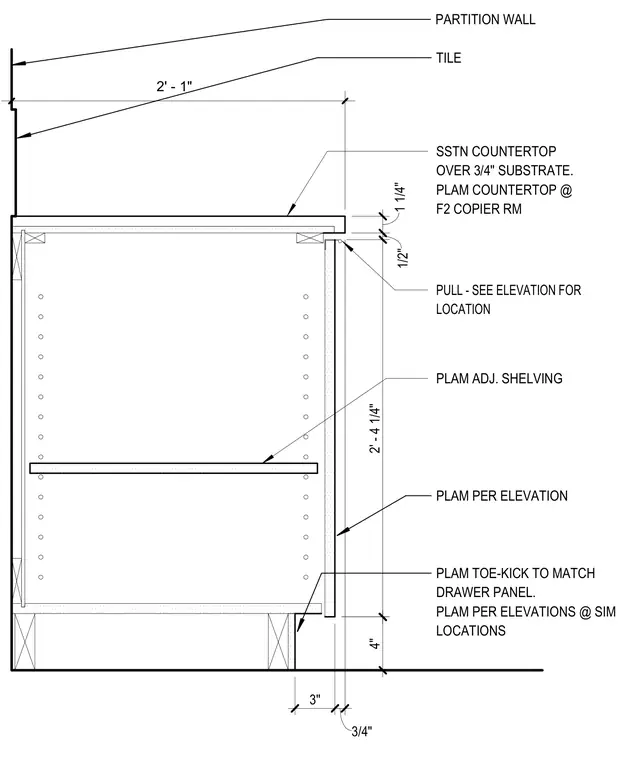

This interior millwork detail shows a base cabinet featuring a solid surface countertop over a three-quarter-inch substrate, supported by wood framing and casework with plastic laminate finishes. Plastic laminate adjustable shelving is installed internally with pin supports spaced along the interior walls. A matching plastic laminate toe-kick is recessed three inches at the base, aligning with the drawer panel above. The cabinet abuts a partition wall finished with tile extending up from the countertop level.
2' - 1" PLAM ADJ. SHELVING 4 " 3 " 3 / 4 " 1 1 / 4 " 1 / 2 " 2 ' - 4 1 / 4 " SSTN COUNTERTOP OVER 3/4" SUBSTRATE. PLAM COUNTERTOP @ F2 COPIER RM TILE PARTITION WALL P U L L - S E E E L E V A T I O N F O R L O C A T I O N PLAM TOE-KICK TO MATCH DRAWER PANEL. PLAM PER ELEVATIONS @ SIM LOCATIONS PLAM PER ELEVATION
