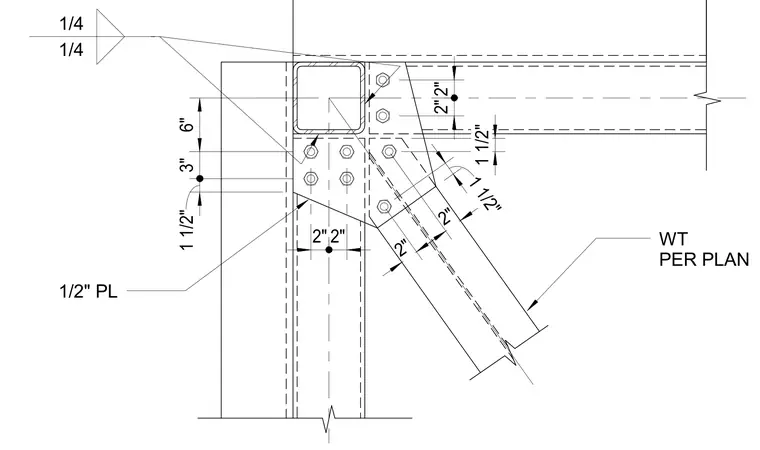

This structural steel connection details a hollow structural section corner column framing into intersecting structural members using one-half-inch gusset plates. The connection is secured with bolted joints featuring standard spacing dimensions and one-quarter-inch fillet welds. Framing members such as WT shapes are sized per plan and tied into the column web and flange intersections. Precise edge distances and bolt spacings govern the gusset plate layout at the column corner.
