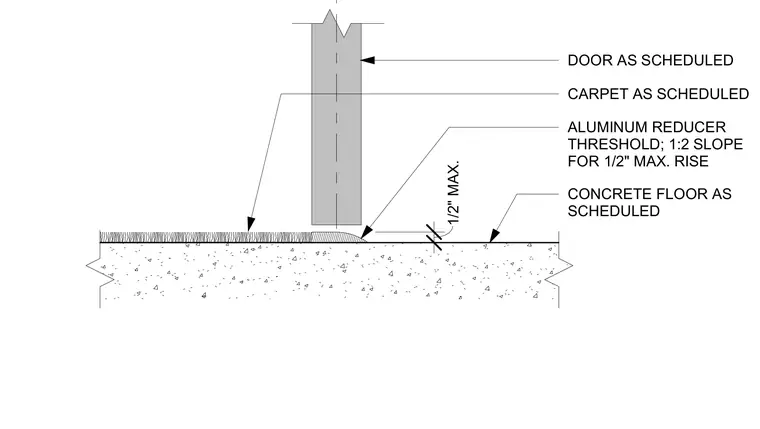

An aluminum reducer threshold transitions between the carpet and concrete floor at a scheduled door opening. The threshold features a one-to-two slope for a one-half-inch maximum rise. The carpet and concrete floor are installed as scheduled, meeting beneath the door.
ALUMINUM REDUCER THRESHOLD; 1:2 SLOPE FOR 1/2" MAX. RISE CARPET AS SCHEDULED CONCRETE FLOOR AS SCHEDULED 1/2" MAX. DOOR AS SCHEDULED
