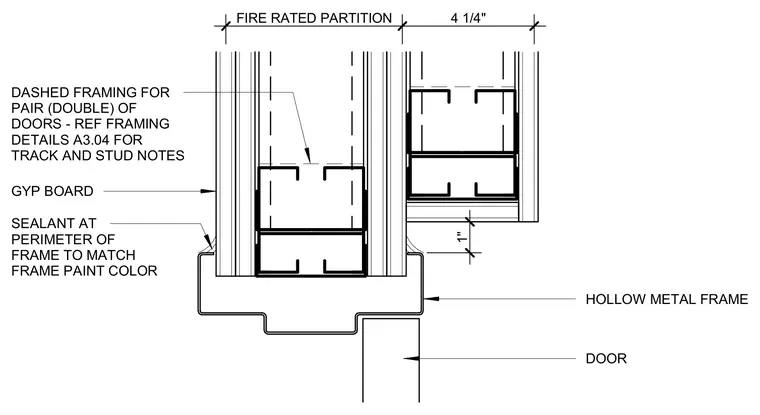

Head condition of a stair door frame installed in a fire-rated partition. The assembly comprises a hollow metal frame anchored within steel stud framing faced with gypsum board. Perimeter sealant is applied between the frame and wall finish to match the frame paint color. Dashed framing indicates conditions for a pair of double doors referencing framing details for track and stud notes.
FIRE RATED PARTITION 4 1/4" DOOR HOLLOW METAL FRAME GYP BOARD SEALANT AT PERIMETER OF FRAME TO MATCH FRAME PAINT COLOR DASHED FRAMING FOR PAIR (DOUBLE) OF DOORS - REF FRAMING DETAILS A3.04 FOR TRACK AND STUD NOTES 1"
