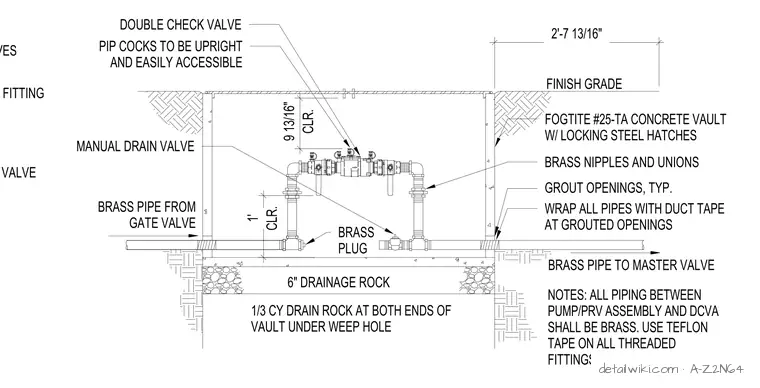

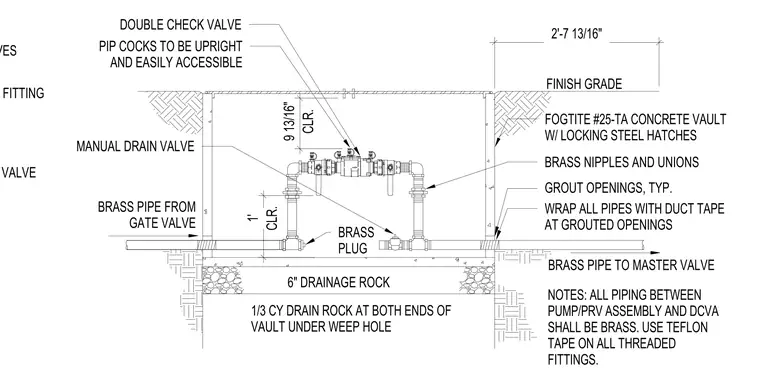

A Fogtite number 25-TA concrete vault with locking steel hatches houses the water supply point of connection assembly below finish grade. A brass pipe from the gate valve enters the vault through a grouted opening, with all pipes wrapped in duct tape at grouted penetrations. Inside the vault, the brass piping connects to a double check valve via brass nipples and unions, maintaining a nine and thirteen-sixteenths inch clearance to the top and a one-foot clearance to the bottom. A manual drain valve, brass plug, and drainage rock beds underneath weep holes at both ends manage internal moisture. All piping between the pump and pressure reducing valve assembly and the double check valve is specified as brass with Teflon tape on all threaded fittings.
PVC MAIN LINE TO AUTOMATIC CONTROL VALVES 3'-0" MINIMUM CLEARANCE TO FIRST JOINT OR FITTING BRASS PIPE FROM PRV TO MASTER CONTROL VALVE BRASS NIPPLES AND UNIONS DOUBLE CHECK VALVE PIP COCKS TO BE UPRIGHT AND EASILY ACCESSIBLE FOGTITE #25-TA CONCRETE VAULT W/ LOCKING STEEL HATCHES WRAP ALL PIPES WITH DUCT TAPE AT GROUTED OPENINGS BRASS PIPE TO MASTER VALVE NOTES: ALL PIPING BETWEEN PUMP/PRV ASSEMBLY AND DCVA SHALL BE BRASS. USE TEFLON TAPE ON ALL THREADED FITTINGS. GROUT OPENINGS, TYP. MANUAL DRAIN VALVE BRASS PLUG 1/3 CY DRAIN ROCK AT BOTH ENDS OF VAULT UNDER WEEP HOLE FINISH GRADE 6" DRAINAGE ROCK BRASS PIPE FROM GATE VALVE 2'-7 13/16" 9 13/16" CLR. 1' CLR.
