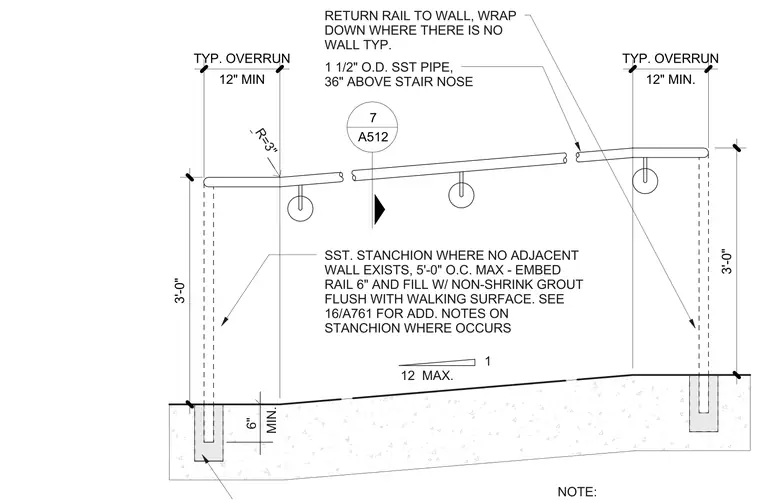

A 1 1/2-inch outer diameter stainless steel pipe handrail is positioned 36 inches above the stair nose or walking surface along the ramp. Where no adjacent wall exists, stainless steel stanchions are spaced at a maximum of 5'-0" on center and embedded 6 inches into the concrete, filled with non-shrink grout flush with the walking surface. The handrail features a minimum 12-inch overrun at terminations and a 3-inch radius bend, returning to the wall or wrapping down where walls are absent.
1 12 MAX. R=3" MIN. 6" SST. STANCHION WHERE NO ADJACENT WALL EXISTS, 5'-0" O.C. MAX - EMBED RAIL 6" AND FILL W/ NON-SHRINK GROUT FLUSH WITH WALKING SURFACE. SEE 16/A761 FOR ADD. NOTES ON STANCHION WHERE OCCURS NOTE: 12" MIN TYP. OVERRUN 12" MIN. TYP. OVERRUN 3'-0" 3'-0" RETURN RAIL TO WALL, WRAP DOWN WHERE THERE IS NO WALL TYP. 1 1/2" O.D. SST PIPE, 36" ABOVE STAIR NOSE 7 A512 _____________________
