An aluminum storefront system typically connects to a scheduled partition with a one-quarter inch shim and caulk joint provided on each side. A typical glass door as scheduled integrates into the opening with typical glazing gaskets.

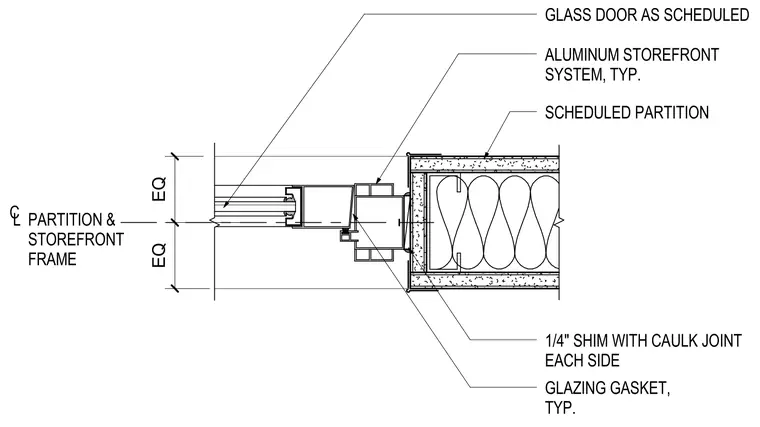

ALUMINUM STOREFRONT SYSTEM, TYP. GLASS DOOR AS SCHEDULED GLAZING GASKET, TYP. SCHEDULED PARTITION CL EQ EQ 1/4" SHIM WITH CAULK JOINT EACH SIDE PARTITION & STOREFRONT FRAME
