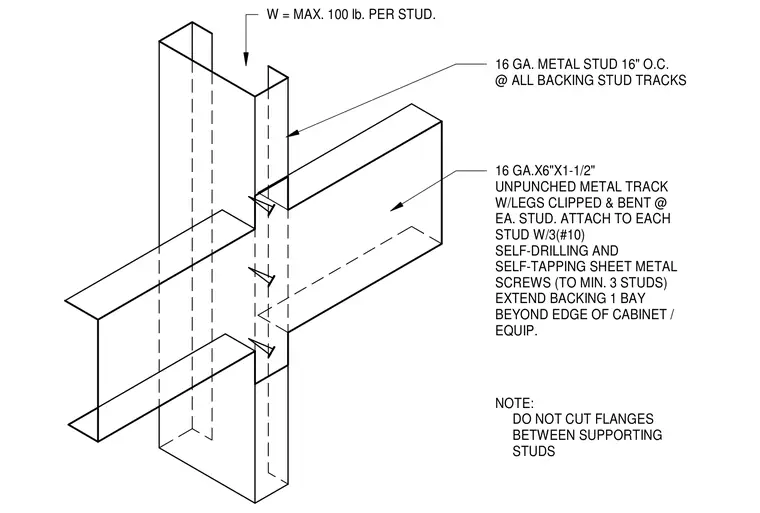

Sixteen-gauge metal studs spaced at sixteen inches on center receive a sixteen-gauge by six-inch by one-and-one-half-inch unpunched metal track with legs clipped and bent at each stud. The track is secured to each stud with three number ten self-tapping sheet metal screws connecting to a minimum of three studs. The backing extends one bay beyond the edge of the cabinet or equipment with a maximum weight capacity of one hundred pounds per stud. Flanges are left uncut between supporting studs.
16 GA. METAL STUD 16" O.C. @ ALL BACKING STUD TRACKS 16 GA.X6"X1-1/2" UNPUNCHED METAL TRACK W/LEGS CLIPPED & BENT @ EA. STUD. ATTACH TO EACH STUD W/3(#10) SELF-DRILLING AND SELF-TAPPING SHEET METAL SCREWS (TO MIN. 3 STUDS) EXTEND BACKING 1 BAY BEYOND EDGE OF CABINET / EQUIP. NOTE: DO NOT CUT FLANGES BETWEEN SUPPORTING STUDS W = MAX. 100 lb. PER STUD.
