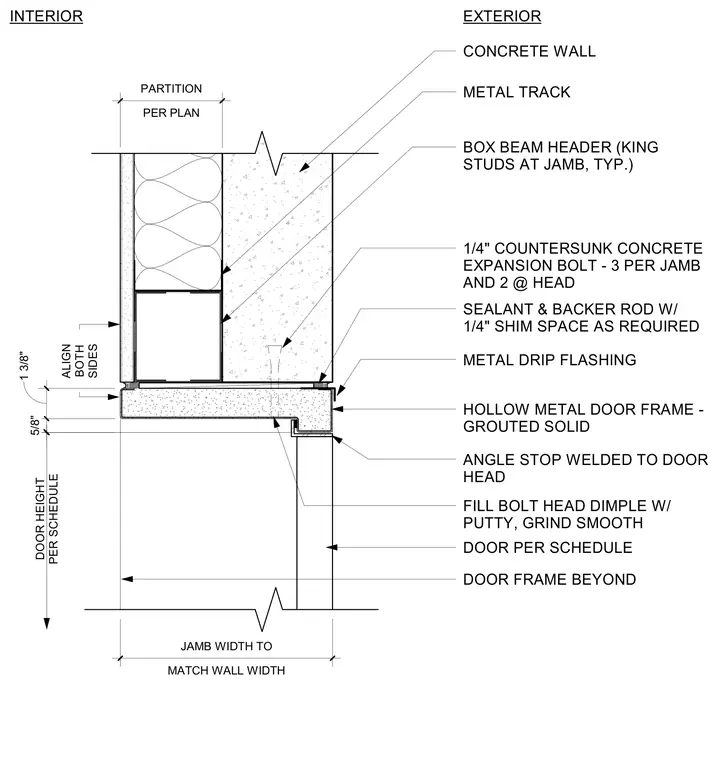

An exterior door head assembly features a hollow metal door frame fully grouted solid and anchored to a concrete wall. The frame is secured using quarter-inch countersunk concrete expansion bolts with three per jamb and two at the head, with bolt head dimples filled with putty and ground smooth. A metal drip flashing sits at the exterior joint backed by sealant and a backer rod with a quarter-inch shim space. The interior side abuts a metal stud partition framing with a box beam header and king studs at the jamb, aligned on both sides with an angle stop welded to the door head.
MATCH WALL WIDTH JAMB WIDTH TO DOOR HEIGHT PER SCHEDULE HOLLOW METAL DOOR FRAME - GROUTED SOLID DOOR PER SCHEDULE DOOR FRAME BEYOND CONCRETE WALL 1/4" COUNTERSUNK CONCRETE EXPANSION BOLT - 3 PER JAMB AND 2 @ HEAD SEALANT & BACKER ROD W/ 1/4" SHIM SPACE AS REQUIRED FILL BOLT HEAD DIMPLE W/ PUTTY, GRIND SMOOTH PER PLAN PARTITION METAL TRACK BOX BEAM HEADER (KING STUDS AT JAMB, TYP.) EXTERIOR INTERIOR 1 3/8" 5/8" ALIGN BOTH SIDES ANGLE STOP WELDED TO DOOR HEAD METAL DRIP FLASHING
