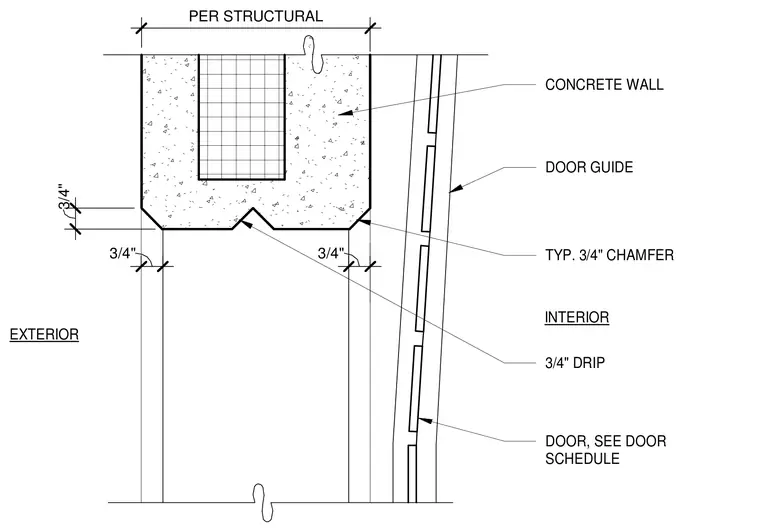

Sectional door head condition mounted against a concrete wall. The concrete wall features a typical 3/4-inch chamfer at its exterior edge and a 3/4-inch drip groove. A door guide is mounted on the interior side adjacent to the door, sized per the door schedule. The overall opening width is dimensioned per structural drawings.
EXTERIOR 3/4" DRIP DOOR, SEE DOOR SCHEDULE TYP. 3/4" CHAMFER CONCRETE WALL INTERIOR DOOR GUIDE PER STRUCTURAL 3/4" 3/4" 3/4"
