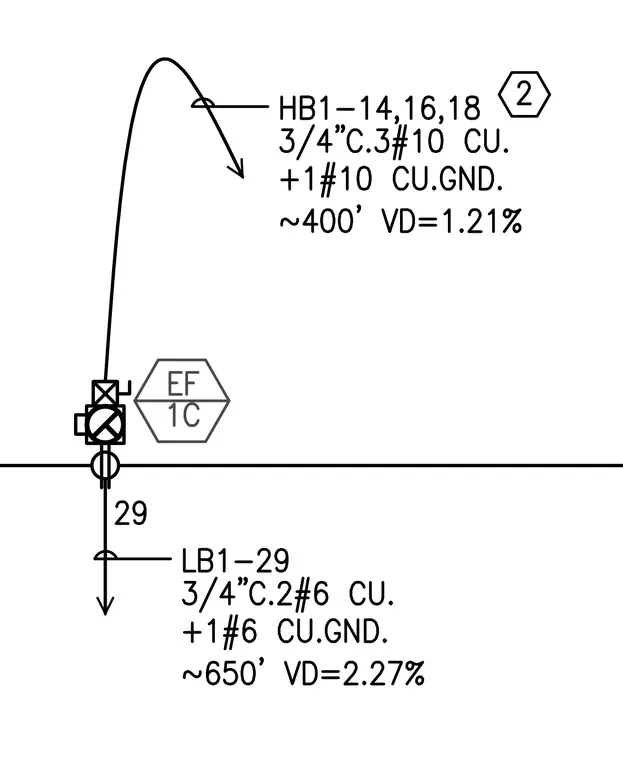

An electrical riser diagram details circuit routing with conduit and copper conductor sizing. The upper branch indicates circuit HB1-14,16,18 utilizing three-quarter-inch conduit with three number 10 copper conductors and one number 10 copper ground over an approximate 400-foot run with a voltage drop of 1.21 percent. The lower branch indicates circuit LB1-29 utilizing three-quarter-inch conduit with two number 6 copper conductors and one number 6 copper ground over an approximate 650-foot run with a voltage drop of 2.27 percent.
