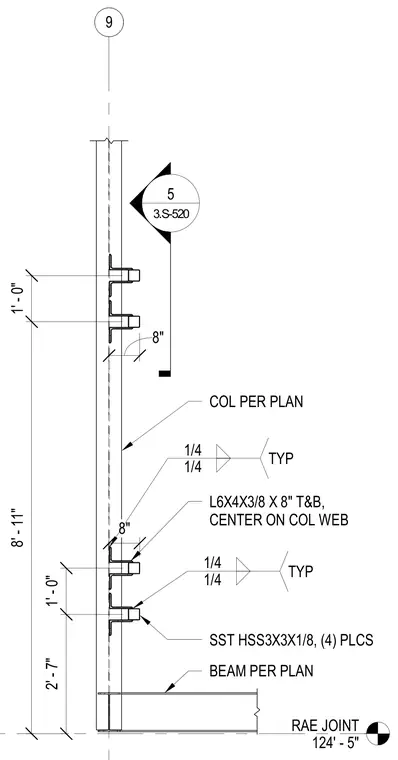

An HSS 3x3x1/8 structural steel member frames into a column web with L6x4x3/8 angle connections at the top and bottom. One-quarter-inch fillet welds are specified typically for the angle connections. Vertical dimensions space the framing members along the column web.
RAE JOINT 124' - 5" 9 8" L6X4X3/8 X 8" T&B, CENTER ON COL WEB 1/4 1/4 TYP 1' - 0" 2' - 7" 1' - 0" 8' - 11" 5 3.S-520 1/4 1/4 TYP SST HSS3X3X1/8, (4) PLCS 8" COL PER PLAN BEAM PER PLAN
