This one-hour fire-rated partition assembly incorporates a zinc control joint on each side with a maximum one-half inch gap between the gypsum board panels. The wall construction follows the specified partition type, utilizing two layers of five-eighths-inch Type X gypsum board backing directly at the control joint. The assembly complies with fire design number WHI-495-PVS-0824 and 0824A.

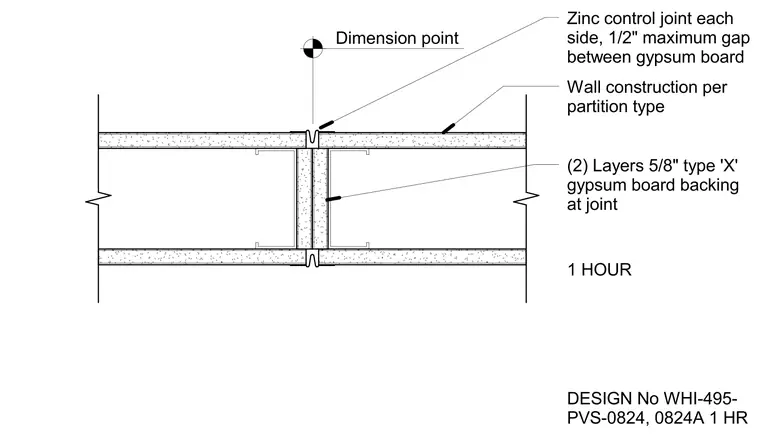

Zinc control joint each side, 1/2" maximum gap between gypsum board Dimension point Wall construction per partition type (2) Layers 5/8" type 'X' gypsum board backing at joint 1 HOUR DESIGN No WHI-495- PVS-0824, 0824A 1 HR
