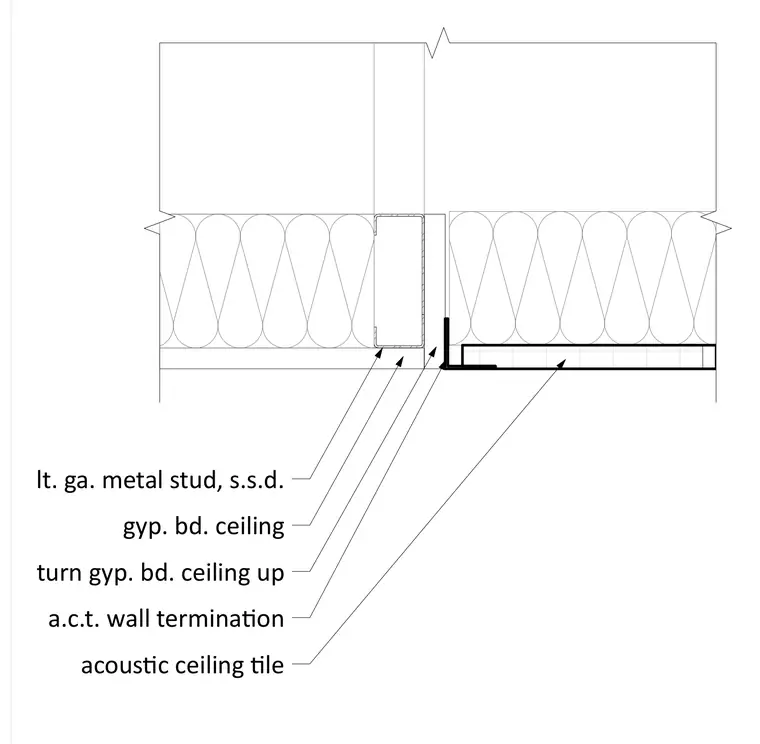

A light-gauge metal stud framing member receives a gypsum board ceiling that turns up vertically at the wall partition. An acoustic ceiling tile terminates at the wall using a standard wall angle molding. The gypsum board ceiling returns upward to form a clean junction adjacent to the suspended acoustic ceiling system.
lt. ga. metal stud, s.s.d. gyp. bd. ceiling turn gyp. bd. ceiling up a.c.t. wall termina Ɵon acous Ɵc ceiling Ɵle
