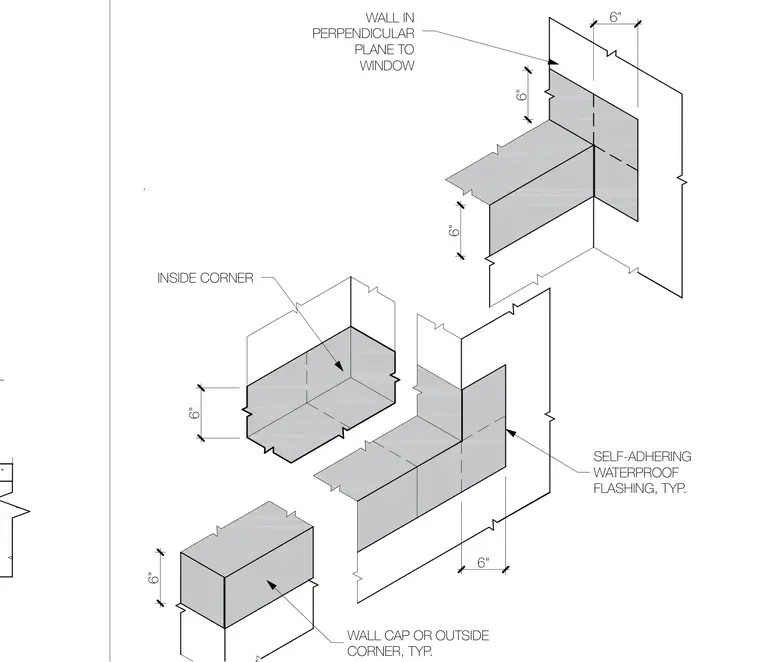

Self-adhering waterproof flashing wraps wall caps, outside corners, and window inside corners with typical six-inch overlaps. The membrane adheres directly to the wall planes and intersects perpendicular wall planes adjacent to window openings. Dimensions indicate standard six-inch extension increments for breakmetal integration.
WALL CAP OR OUTSIDE CORNER, TYP. SELF-ADHERING WATERPROOF FLASHING, TYP. WALL IN PERPENDICULAR PLANE TO WINDOW INSIDE CORNER 6" 6" 6" 6" 6" 6" PLY FOR BREAKMETAL
