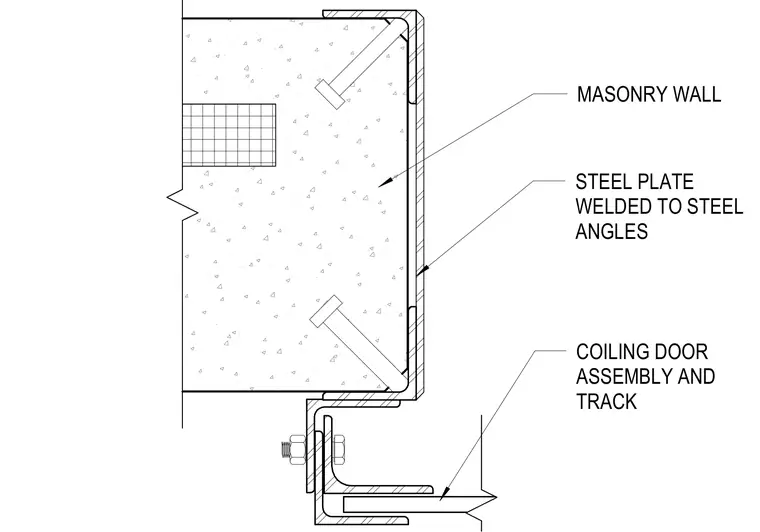

A steel plate is welded to steel angles and anchored to the masonry wall at the coiling door jamb. The coiling door assembly and track connect directly to the structural steel angle framing. Threaded fasteners secure the track components together in alignment with the opening.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
