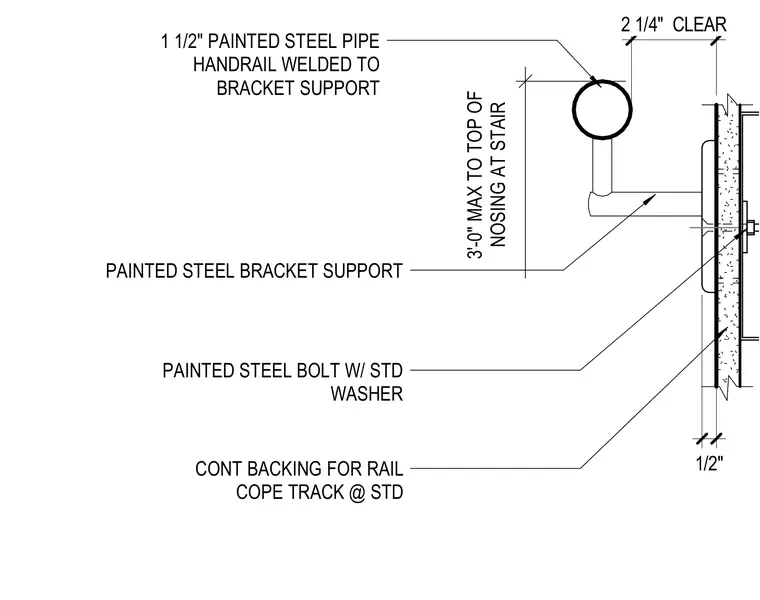

A one-and-a-half-inch painted steel pipe handrail is welded to a painted steel bracket support. The bracket is secured to the wall with a painted steel bolt and standard washer. Continuous backing for the rail is installed behind the gypsum board, with track coped at the stud. The handrail maintains a two-and-a-quarter-inch clear distance from the wall face and is positioned at a maximum height of three feet zero inches to the top of the nosing at the stair.
1/2" 3'-0" MAX TO TOP OF NOSING AT STAIR 1 1/2" PAINTED STEEL PIPE HANDRAIL WELDED TO BRACKET SUPPORT CONT BACKING FOR RAIL COPE TRACK @ STD PAINTED STEEL BOLT W/ STD WASHER PAINTED STEEL BRACKET SUPPORT 2 1/4" CLEAR
