Accessible Drinking Fountain Detail

Materials

About this detail

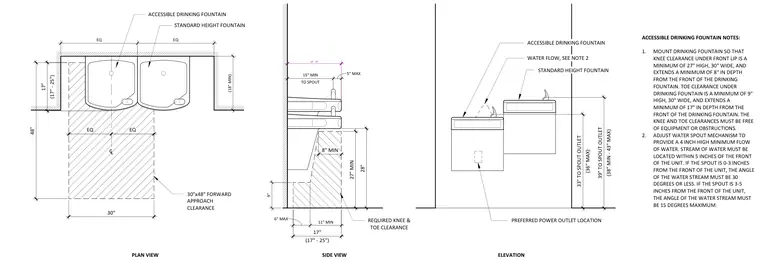

An accessible drinking fountain installation layout provides required knee and toe clearances beneath the front lip with a minimum twenty-seven inch height, thirty-inch width, and eight-inch depth for knee space, alongside a minimum nine-inch height, thirty-inch width, and seventeen-inch depth for toe space. The unit maintains a thirty-inch by forty-eight-inch forward approach clearance zone on the floor plan. Spout outlets are positioned at a maximum thirty-six inches for the accessible fountain and between thirty-eight and forty-three inches for the standard height fountain. Water spout mechanisms deliver a minimum four-inch high water flow stream located within five inches of the unit front at specified stream angles.
