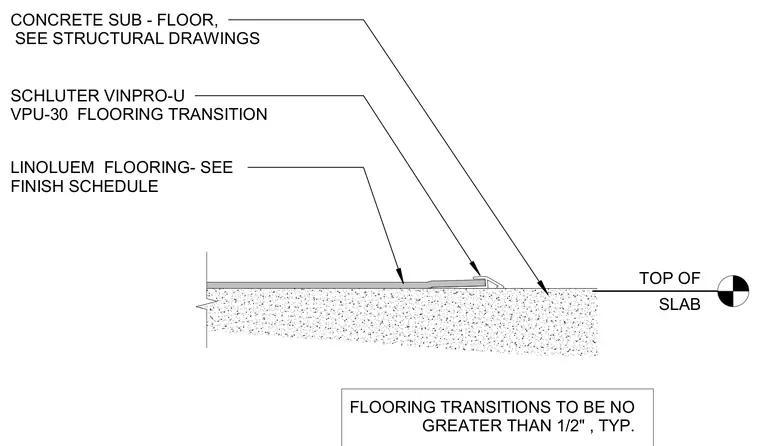

Linoleum flooring terminates against a Schluter Vinpro-U VPU-30 flooring transition profile anchored to a concrete subfloor. The transition maintains a level change of no greater than one-half inch typically. The concrete subfloor is detailed per structural drawings, and the linoleum flooring material is specified per the finish schedule.
SLAB TOP OF SCHLUTER VINPRO-U VPU-30 FLOORING TRANSITION LINOLUEM FLOORING- SEE FINISH SCHEDULE CONCRETE SUB - FLOOR, SEE STRUCTURAL DRAWINGS FLOORING TRANSITIONS TO BE NO GREATER THAN 1/2" , TYP.
