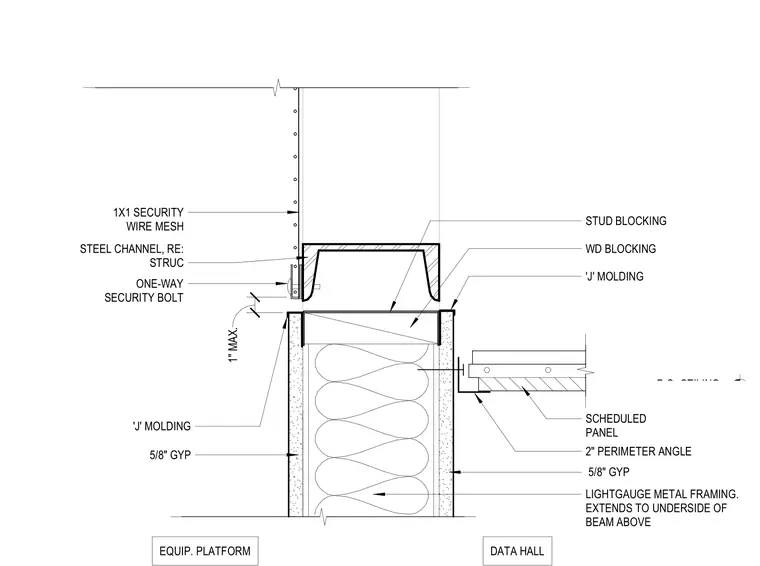

The assembly consists of a one-by-one inch security wire mesh secured to a steel channel, which is fastened with one-way security bolts. This mesh partition extends to the underside of the beam above, maintaining a maximum one-inch clearance. The adjacent partition wall is constructed of light-gauge metal framing with five-eighths-inch gypsum wallboard, finished with J-molding at the top edge. Wood blocking is provided within the wall cavity for structural support. A scheduled ceiling panel is supported by a two-inch perimeter angle, which is also finished with J-molding where it meets the partition wall.
Text on the drawing
B.O. CEILING SEE RCP DATA HALL EQUIP. PLATFORM 1X1 SECURITY WIRE MESH STEEL CHANNEL, RE: STRUC ONE-WAY SECURITY BOLT SCHEDULED CEILING PANEL 2" PERIMETER ANGLE 5/8" GYP WD BLOCKING 'J' MOLDING 5/8" GYP STUD BLOCKING LIGHTGAUGE METAL FRAMING. EXTENDS TO UNDERSIDE OF BEAM ABOVE 'J' MOLDING 1" MAX.
