The stair railing transition assembly consists of one-and-a-half-inch by one-and-a-half-inch hollow structural section steel tube railings and a one-and-a-quarter-inch nominal pipe size schedule forty minimum steel pipe handrail. A five-eighths-inch diameter steel bar support bracket attaches at each vertical post, which is fabricated from one-and-a-half-inch by one-and-a-half-inch hollow structural section steel tubing spaced at a maximum of forty-eight inches on center unless otherwise noted. All stair railing connections and intersections are welded and ground smooth. The assembly fastens to a steel channel stringer with clear spacing between rails maintained at less than four inches and all divisions equal. Standard dimensions include a three-foot-six-inch overall height and an eleven-inch tread depth unless otherwise noted.

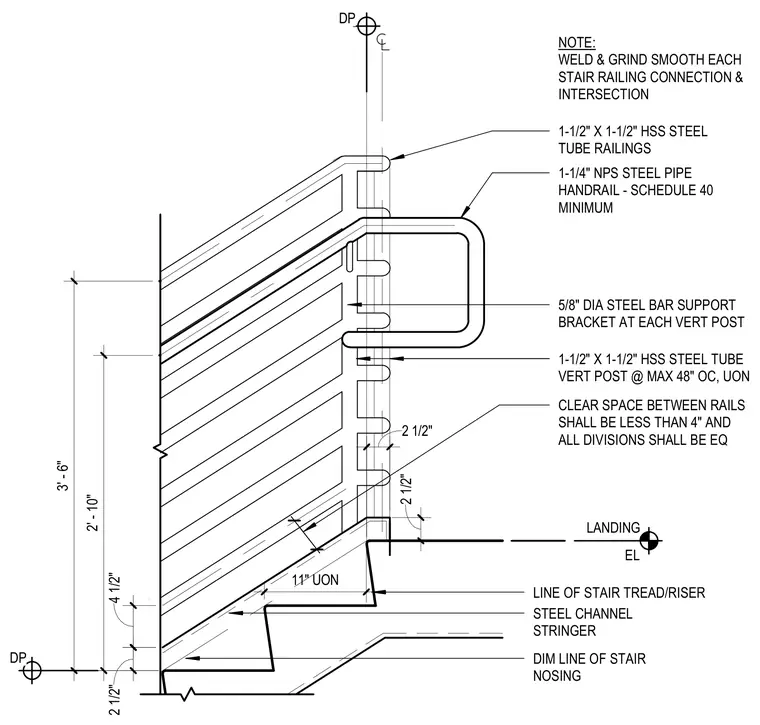

DP NOTE: WELD & GRIND SMOOTH EACH STAIR RAILING CONNECTION & INTERSECTION 1-1/2" X 1-1/2" HSS STEEL TUBE RAILINGS 1-1/4" NPS STEEL PIPE HANDRAIL - SCHEDULE 40 MINIMUM 5/8" DIA STEEL BAR SUPPORT BRACKET AT EACH VERT POST 1-1/2" X 1-1/2" HSS STEEL TUBE VERT POST @ MAX 48" OC, UON CLEAR SPACE BETWEEN RAILS SHALL BE LESS THAN 4" AND ALL DIVISIONS SHALL BE EQ LINE OF STAIR TREAD/RISER STEEL CHANNEL STRINGER DIM LINE OF STAIR NOSING 2 1/2" 11" UON 2' - 10" 3' - 6" DP LANDING EL 2 1/2" 4 1/2" 2 1/2"
