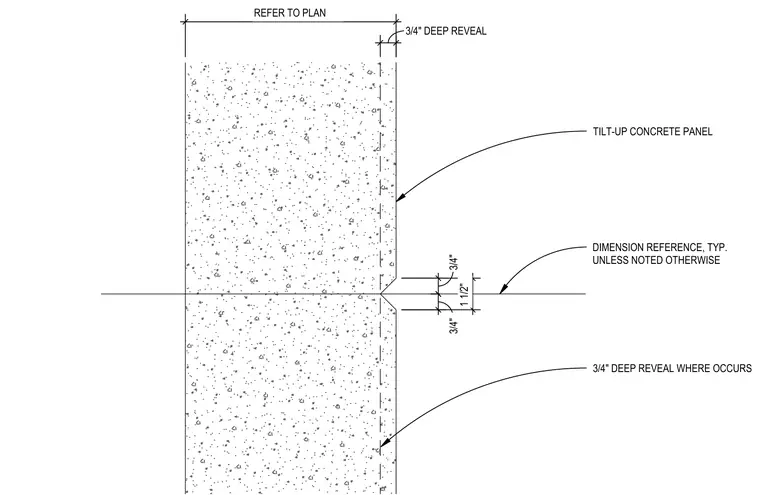

A tilt-up concrete wall panel features a 3/4-inch deep architectural reveal occurring as indicated per plan. Dimensional references establish spacing with a 1 1/2-inch vertical span between recessed lines unless noted otherwise.
TILT-UP CONCRETE PANEL DIMENSION REFERENCE, TYP. UNLESS NOTED OTHERWISE 3/4" 3/4" 1 1/2" 3/4" DEEP REVEAL WHERE OCCURS REFER TO PLAN 3/4" DEEP REVEAL
