A non-slotted head track is fastened to the underside of a concrete deck with one-half inch diameter expansion bolts spaced twelve inches on center with three inches minimum embedment, or with two number twelve self-tapping screws at twelve inches on center when occurring at non-concreted steel decks. Mineral wool insulation plugs fill the flute voids above the track. Gypsum board is scribed to the profile of the deck leaving a one-half inch gap filled with acoustical sealant, while fireproofing continuity is maintained where applicable.

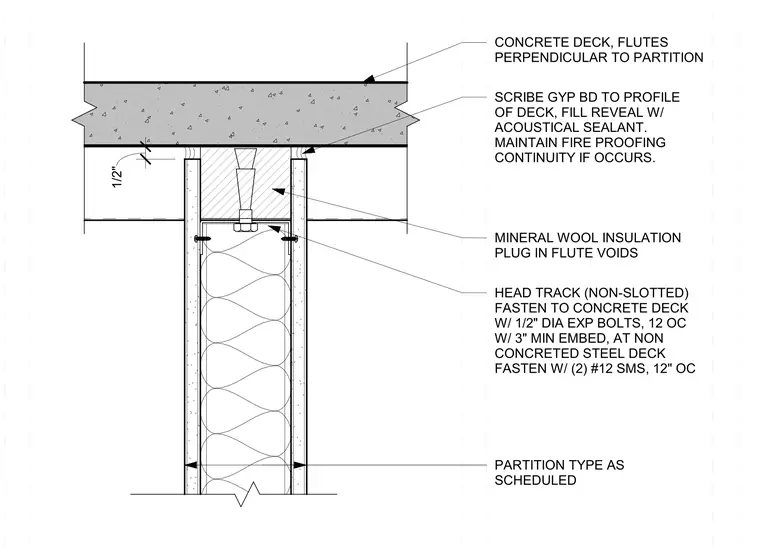

HEAD TRACK (NON-SLOTTED) FASTEN TO CONCRETE DECK W/ 1/2" DIA EXP BOLTS, 12 OC W/ 3" MIN EMBED, AT NON CONCRETED STEEL DECK FASTEN W/ (2) #12 SMS, 12" OC MINERAL WOOL INSULATION PLUG IN FLUTE VOIDS CONCRETE DECK, FLUTES PERPENDICULAR TO PARTITION PARTITION TYPE AS SCHEDULED SCRIBE GYP BD TO PROFILE OF DECK, FILL REVEAL W/ ACOUSTICAL SEALANT. MAINTAIN FIRE PROOFING CONTINUITY IF OCCURS. 1/2"
